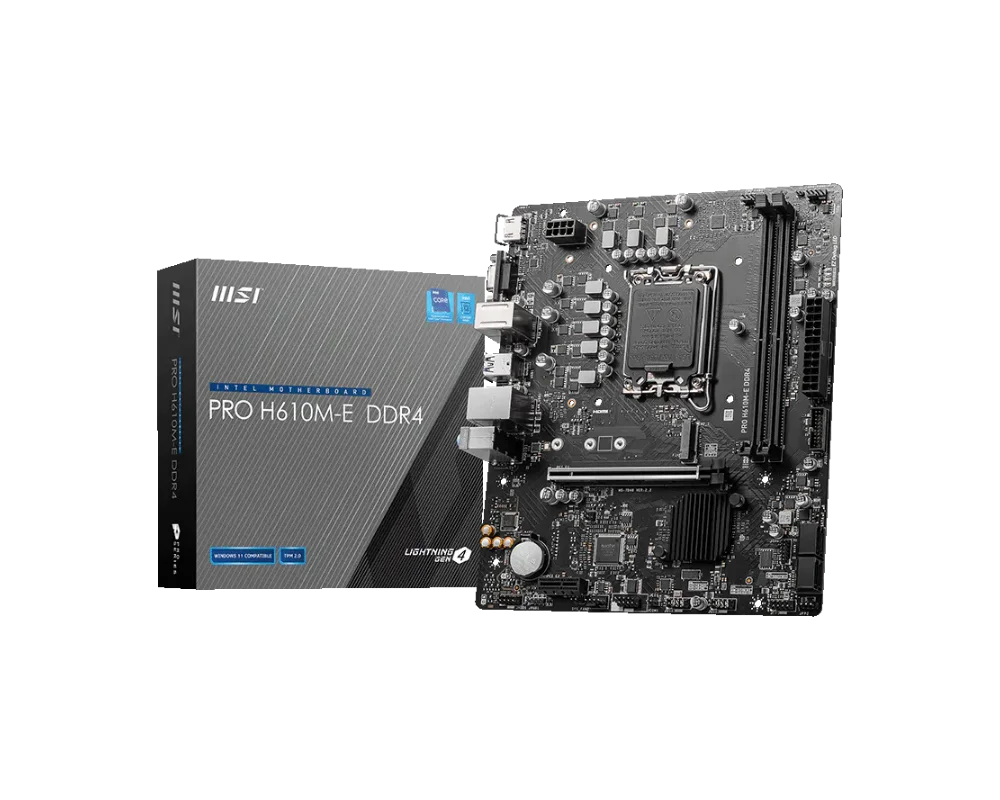

MSI PRO H610M-E DDR4 Motherboard

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors Processor socket LGA1700 Please go to www.msi.com to get the newest support status as new processors are released. See supported processors

Intel® H610 Chipset

2x DDR4 memory slots, support up to 64GB Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Please refer to www.msi.com for more information on compatible memory. See supported memory

1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot (From H610 chipset) Supports PCIe 3.0 x1

1x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz Available only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed.

4x SATA 6Gb/s ports (From H610 chipset)

1x M.2 slot (Key M) (from H610 chipset) Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices

Realtek® ALC897 Codec 7.1-Channel High Definition Audio

1x Realtek® RTL8111H 1Gbps LAN controller

1x 24-pin ATX main power connector 1x 8-pin +12V power connector

1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 2x USB 2.0 Type-A connectors (From Hub-GL850G) Supports additional 4 USB 2.0 ports

1x 4-pin CPU fan connector 2x 4-pin system fan connectors

1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Serial port connector

1x Clear CMOS jumper

1x 4-pin RGB LED connector 4x EZ Debug LED

M-ATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
